SKF FY-2-3/16 TF FLG FLANGE BEARING UNIT
Quick Overview
Manufactured By: SKF
Manufacturer Part Number: FY-2-3/16 TF FLG
IMS Product Code: 2156659
Packaging: Sold Individually
Description:

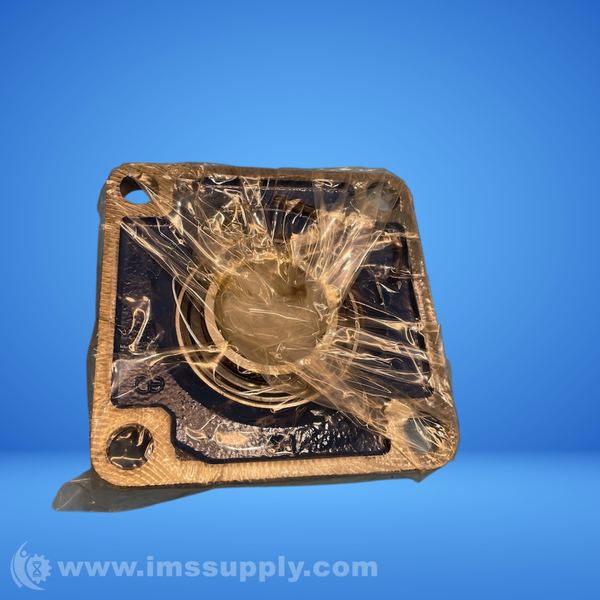

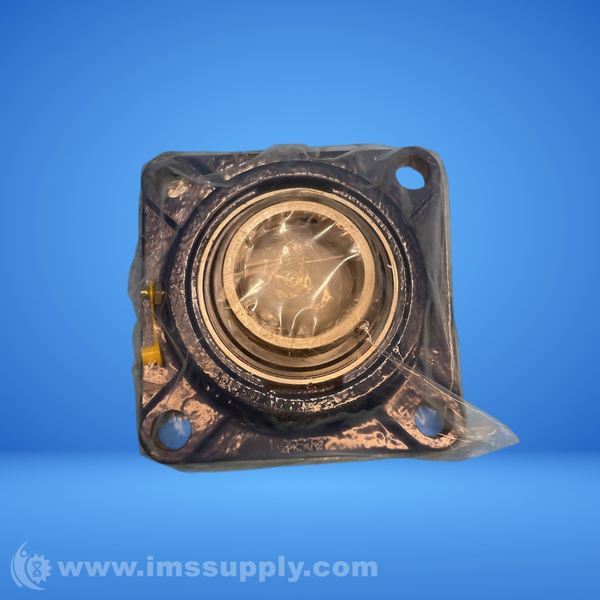

SKF FY-2-3/16 TF FLG Flange Bearing Unit
2-3/16 inch shaft 2-bolt cast-iron square flange bearing unit with set screw locking
Specifications
- Bearing Bore Type: Cylindrical
- Bearing Sealing: Seal and flinger on both sides
- Dimension Type: Inch
- Fastening Bolt Hole Type (Housing): Plain holes
- Housing: Cast iron
- Housing Material: Cast iron
- I.D.: 2 1/5 in
- Inner Diameter (mm): 55.562
- Lubricant (in Bearing): Grease
- O.D.: 6 8/9 in
- Outer Diameter (mm): 175.000
- Relubrication Nipple: With
- Unit Sealing: Without
- Width (mm): 62.770
- Category: Flange Block Bearings
- UNSPSC: 31171501
- Harmonized Tariff Code: 8483.20.40.40
- Weight / kgm: 3.31
- Weight / LBS: 7.3
- Bore: 2.188 Inch | 55.575 Millimeter
- Relubricatable: Yes
- Mounting Method: Set Screw
- Length Thru Bore: 2.188 Inch | 55.575 Millimeter
- Bolt Spacing: 5.125 Inch | 130.18 Millimeter
- Nominal Bolt Circle Diameter Round: 7.2 Inch | 184 Millimeter
- Housing Style: 4 Bolt Square Flange Block
- Number of Mounting Holes: 4
- Mounting Bolts: 5/8 Inch

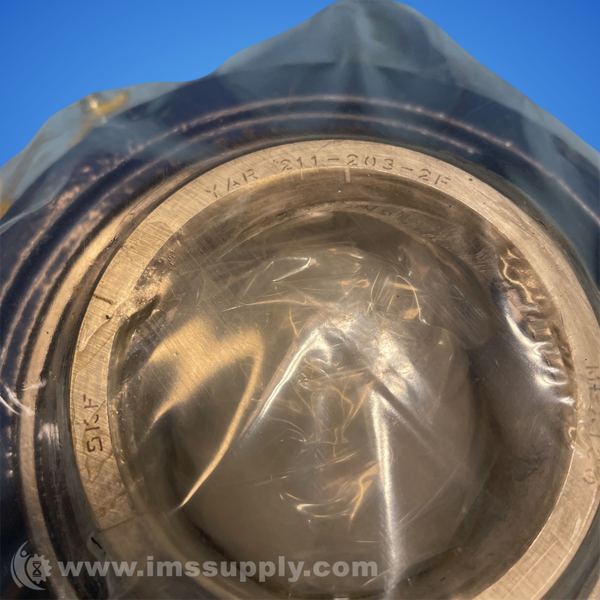

- Insert Part Number: YAR 211-203-2F
- Housing Configuration: 1 Piece Solid
- Expansion / Non-expansion: Non-expansion
- Seals: M Seal
- Pilot Configuration: No Pilot
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
