SMC CEU5-D MULTI-COUNTER
Quick Overview
Manufactured By: SMC
Manufacturer Part Number: CEU5-D
IMS Product Code: 1810820
Packaging: Sold Individually
Description:

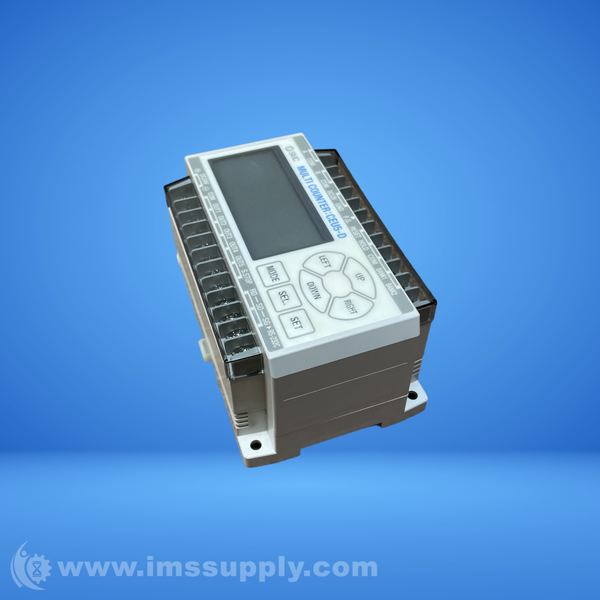

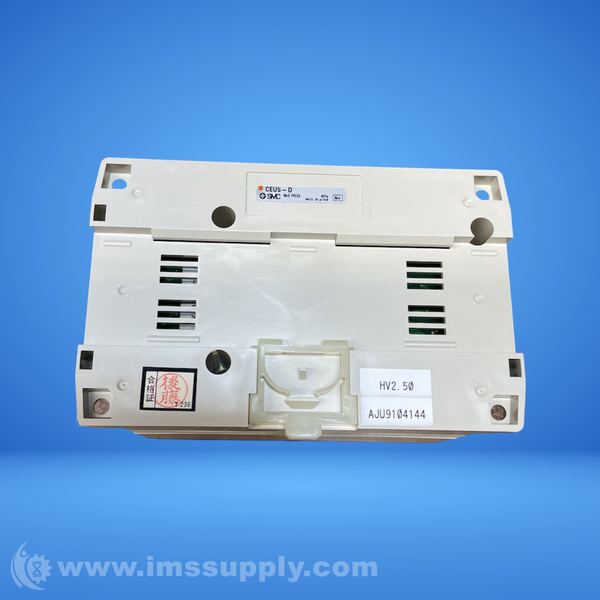

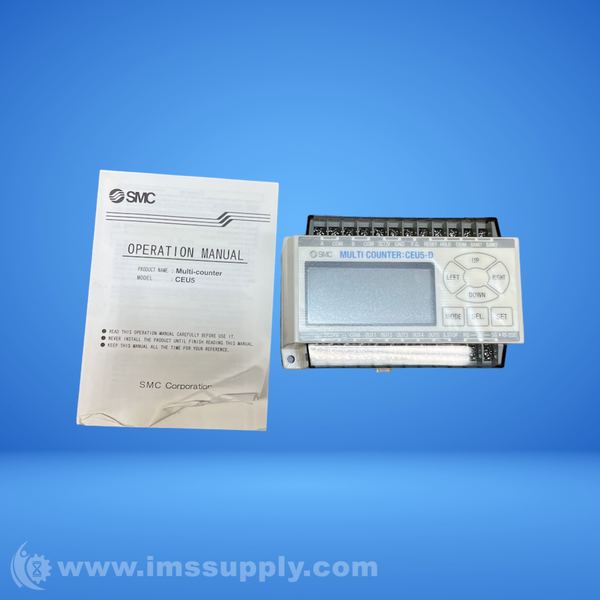

SMC CEU5-D Multi-Counter
Multi-counter designed for use with CEP1 or CE1 high precision stroke reading cylinders. Features RS-232C communication for linking multiple counters with unique addresses (1-99) and BCD output. Ideal for precise position monitoring in pneumatic automation systems.
Specifications
- Model: CEU5-D
- Type: Multi-counter
- Mounting: Surface mounting (DIN rail or Screw stop)
- Operating system: Adding - subtracting type
- Operation mode: Operating mode, Data setting mode, Function setting mode
- Reset system: External reset terminal
- Display system: LCD (With back light)
- Number of digits: 6 digits
- Memory holding: Setting value (always held), Count value (Hold/Non-hold switching)
- Input signal type: Count input, Control signal input (Reset, Hold, Bank selection)
- Count input: No-voltage pulse input
- Pulse signal system: 90 phase difference input -1/ UP/DOWN separate input -2
- Counting speed: 100 kHz -1
- Control signal input: Voltage input (12 VDC or 24 VDC)
- Sensor power supply: 10.8 to 13.2 VDC, 60 mA
- Output signal type: Preset output, Cylinder stop output
- Preset output configuration: Compare/Hold/One-shot (100 ms fixed pulse)
- Output type: Separate 5 point output/Binary code output
- Output delay time: 5 ms or less (for normal output)
- Communication system: RS-232C
- Output transistor mode: NPN open collector Max 30 VDC, 50 mA
- Power supply voltage: 21.6 to 26.4 VDC
- Power consumption: 10 W or less
- Withstand voltage: Between case and AC line: 1500 VAC for 1 min. Between case and signal ground: 500 VAC for 1 min.
- Insulation resistance: Between case and AC line: 500 VDC, 50 M or more
- Ambient temperature: 0 to 50 degrees C (No freezing)
- Ambient humidity: 35 to 85% RH (No condensation)
- Noise resistance: Square wave noise from a noise simulator (pulse duration 1 ?s) between power supply terminals ?2000 V, I/O line ?600 V
- Shock resistance: Endurance 10 to 55 Hz; Amplitude 0.75 mm; X, Y, Z for 2 hours each
- Impact resistance: Endurance 10 G; X, Y, Z directions, 3 times each
- Weight: 350 g or less
