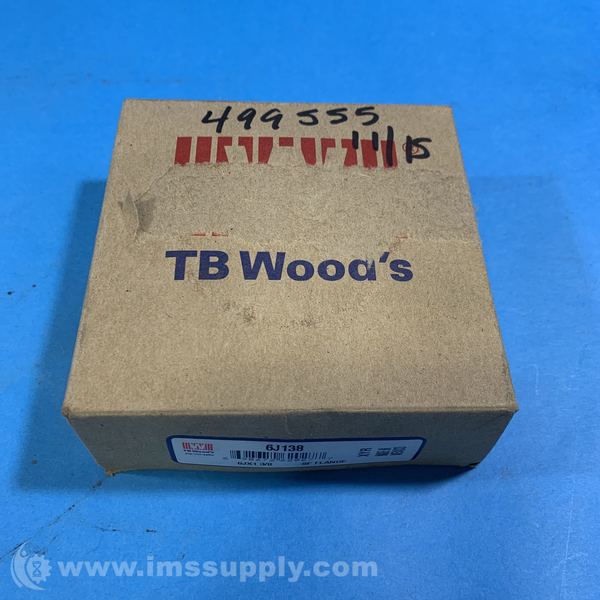

TB WOODS 6J138 SURE-FLEX FLANGE
Quick Overview
Manufactured By: TB WOODS
Manufacturer Part Number: 6J138
IMS Product Code: 1842546
Packaging: Sold Individually
Description:
TB Woods 6J138 Sure-Flex Flange
Sure-Flex Type J Flange coupling with high strength cast iron material, 1 3/8 inch bore size, 6000 RPM maximum speed.
Specifications
- Coupling Size: 6
- Material Type: High Strength Cast Iron
- Bore Size: 1 3/8 in
- Max RPM: 6000
- Outside Diameter (D): 4 in
- Length Through Bore (C): 1 5/16 in
- SF Flange Length (T): 3/4 in
- SF Hub Diameter (H): 2 1/2 in
- SF Hub Length (E): 9/16 in
- Bore Tolerance: +.0005 to +.0015 in
- Setscrew Size, Location: 5/16-18 UNC, One over KS and @ 90 Degrees
- Setscrew Torque Requirement: 13 in-lb
- Parallel Misalignment [Max]: 0.015 in
- Angular Gap Misalignment [Max]: 0.070 in
- Angular Misalignment [Max]: 1 degrees
- Torque Rate: 585 in-lbs
- Keyseat Size: 5/16 in x 5/32 in
- Torque: 585 in-lb
- Component Weight: 1.2 lbs
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 7 hours and 44 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 4 In Stock
Ships today if ordered in the next 7 hours and 44 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 7 hours and 44 minutes.
