TB WOODS 6S78 SPACER FLANGE
Quick Overview
Manufactured By: TB WOODS
Manufacturer Part Number: 6S78
IMS Product Code: 1842557
Packaging: Sold Individually
Description:

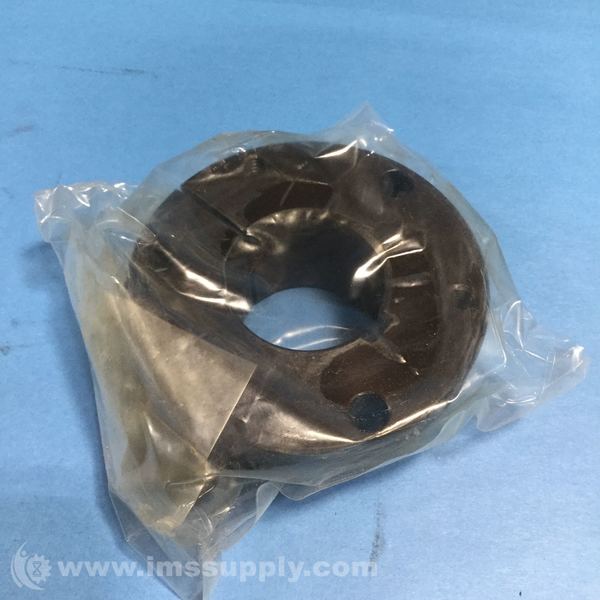

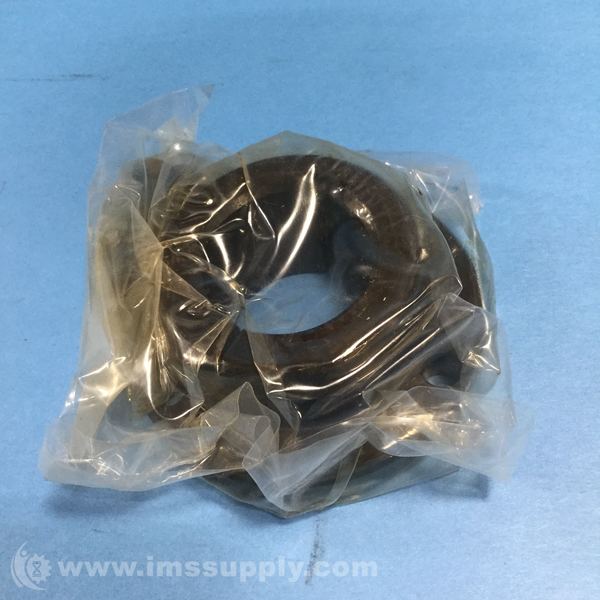

TB Woods 6S78 Spacer Flange
High strength cast-iron TB Woods Sure-Flex gear coupling flange. These couplings utilize flexible elastomer sleeves to transmit torque and accommodate shaft misalignment. They have exceptional torsional flexibility, with the 4-way flexing action absorbing virtually all types of shock, vibration, misalignment and end float. Couplings can be installed quickly and easily, thanks to the simple design with no bolts, gaskets, covers or seals.
Specifications
- Material Type: High Strength Cast Iron
- Bore Size: 7/8"
- Max RPM: 6000
- Outside Diameter (D): 4 in
- Length Through Bore (C): 1 5/8 in
- Setscrew Length: 3/4 in
- SF Flange Length (T): 25/32 in
- SF Hub Diameter (H): 2 1/2 in
- SF Hub Length (E): 17/32 in
- Bore Tolerance: +.0005 to +.0015 in
- Setscrew Size, Location: 5/16-18 UNC, One over KS and @ 90 Degrees
- Setscrew Torque Requirement: 13 in-lb
- Parallel Misalignment [Max]: 0.015 (in) with EPDM/Neoprene Sleeves and 0.010 (in) with Hytrel Sleeves
- Angular Gap Misalignment [Max]: 0.070 (in) with EPDM/Neoprene Sleeves and 0.016 (in) with Hytrel Sleeves
- Angular Misalignment [Max]: 1° with EPDM/Neoprene Sleeves and 1/4° with Hytrel Sleeves
- Component WR²: 0.0276 lbs ft²
- Torque Rate: 585 (in-lbs) with EPDM or Neoprene sleeve; 1,800 (in-lbs) with Hytrel sleeve
- Keyseat Size: 3/16 in x 3/32 in
- Torque: 585 in-lb with EPDM or Neoprene sleeve, 1,800 in-lb with Hytrel sleeve
- Component Weight: 1.9 lbs
