TB WOODS 7S114 SPACER FLANGE
Quick Overview
Manufactured By: TB WOODS
Manufacturer Part Number: 7S114
IMS Product Code: 2121154
Packaging: Sold Individually
Description:

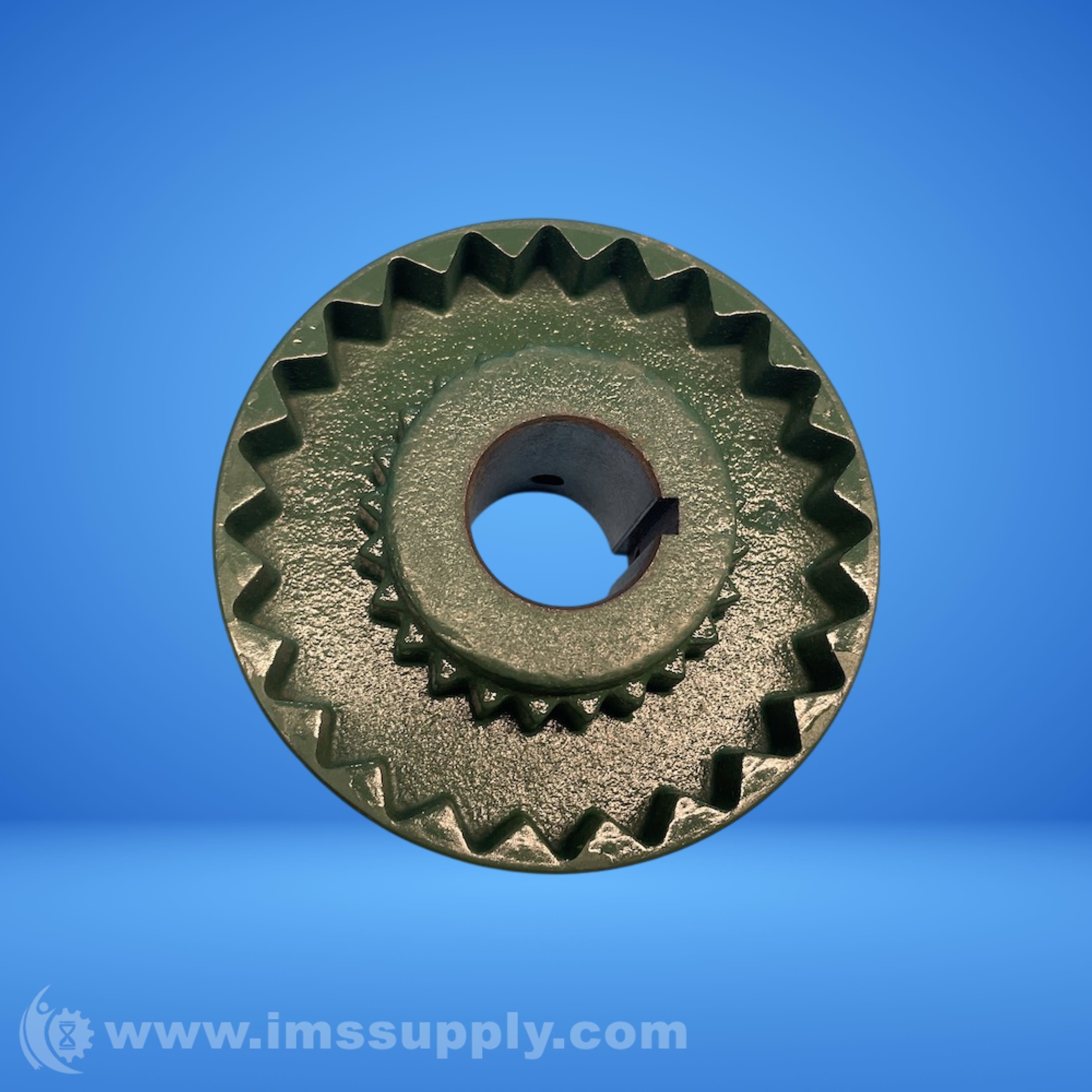

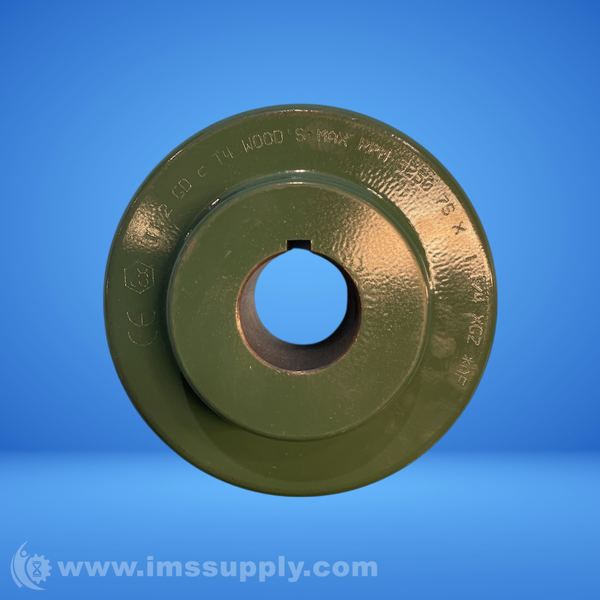

TB Woods 7S114 Spacer Flange
Cast iron spacer flange for Sure-Flex couplings, size 7, 1.25 inch bore, 4.625 inch outside diameter, 1.84375 inch length through bore
Specifications
- Series: Sure-Flex
- Material: High Strength Cast Iron
- Coupling Size Code: 7
- Hub Flange Type Code: S
- Bore Diameter: 1.2500 in
- Bore Type: Bored to Size
- Hub Type: Spacer Flange
- Flange Diameter: 4.6250 in
- Length Through Bore: 1-27/32 in
- Torque Capacity: 2875 in
- Max Rpm: 5250 rpm
- Horsepower @ 100 RPM: 1.2 (EPDM & Neoprene) hp, 4.6 (Hytrel) hp
- Outside Diameter: 4.6250 in
- Bore Tolerance: +0.0005 to +0.0015
- Max Angular Misalignment: 1° with EPDM/neoprene sleeves and 1/4° with hytrel sleeves

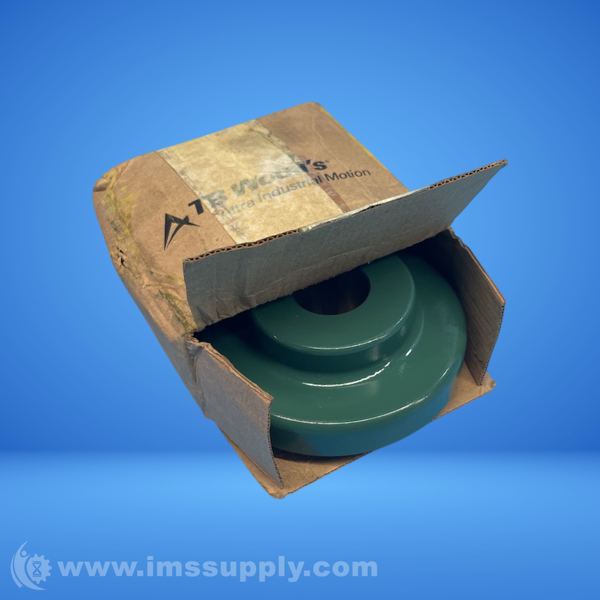

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
