TB WOODS 8S112 SPACER FLANGE
Quick Overview
Manufactured By: TB WOODS
Manufacturer Part Number: 8S112
IMS Product Code: 1842729
Packaging: Sold Individually
Description:

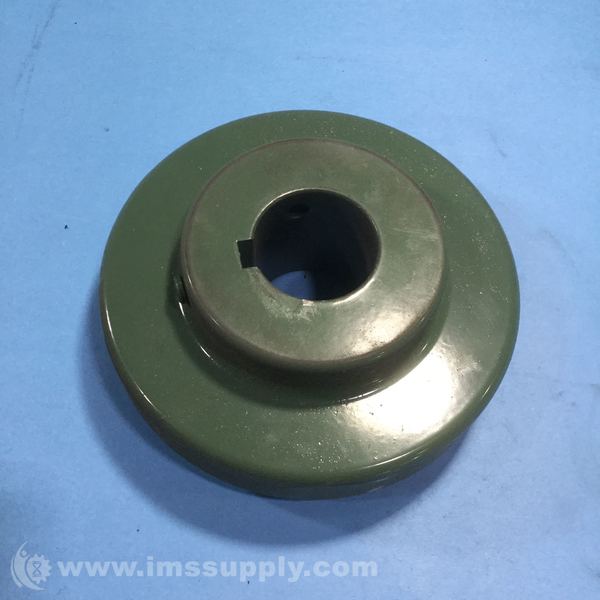

TB Woods 8S112 Spacer Flange
Cast iron spacer flange for shaft coupling, 1.5 inch bore, 5.45 inch flange diameter, part of TB Woods' D-Flex series.
Specifications
- Material: High Strength Cast Iron
- Bore Diameter: 1.5 in
- Flange Diameter: 5.45 in
- Length Through Bore: 2.09375 in
- Hub Diameter: 3.25 in
- Hub Length: 0.75 in
- Keyway Width: 0.375 in
- Keyway Depth: 0.1875 in
- Max RPM: 4500 rpm
- Torque Capacity: 4530 in-lb (with Hytrel sleeve)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
