TELEMECANIQUE GV2-M05 MOTOR CIRCUIT BREAKER
Quick Overview
Manufactured By: TELEMECANIQUE
Manufacturer Part Number: GV2-M05
IMS Product Code: 1914018
Packaging: Sold Individually
Description:

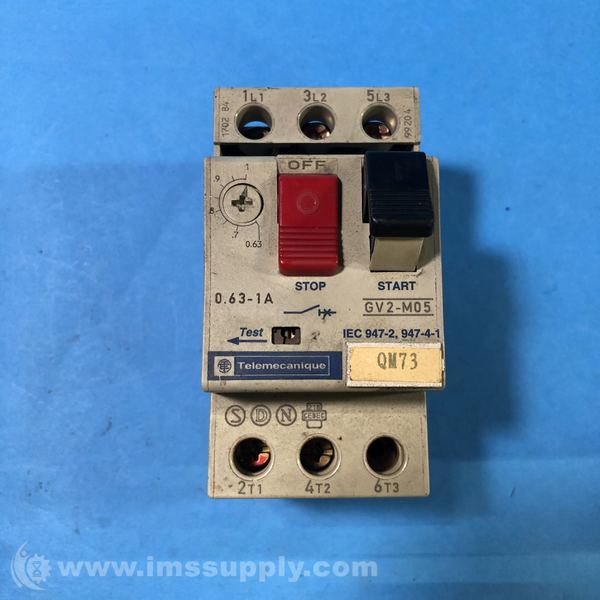

Telemecanique GV2-M05 Motor Circuit Breaker
3-Pole Thermal Magnetic Circuit Breaker with Pushbutton Control, 690 VAC, 0.63-1.0 Amp Range
Specifications
- rated_current: 0.63-1 A
- number_of_poles: 3P
- Relay Voltage (VAC): 690
- Amps: 0.63-1
- Hz: 50-60
- Volts: 690
- breaking_capacity: according to IEC/EN 60947-2: 100 kA Icu at 400/415 V AC 50/60 Hz, 50 kA Icu at 440 V AC 50/60 Hz, 15 kA Icu at 500 V AC 50/60 Hz
- magnetic_tripping_current: 13 x Ir
- connection: screw clamp terminals
- mounting_mode: clip-on on 35 mm DIN rail, screw on plate
- width: 45 mm
- height: 81 mm
- depth: 79 mm
- product_weight: 0.265 kg
- compliance: IEC/EN 60947-2, UL 508, CSA C22.2 No 14
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 5 minutes.
