TELEMECANIQUE GV2ME10 MOTOR CIRCUIT BREAKER
Quick Overview
Manufactured By: TELEMECANIQUE
Manufacturer Part Number: GV2ME10
IMS Product Code: 1747475
Packaging: Sold Individually
Description:

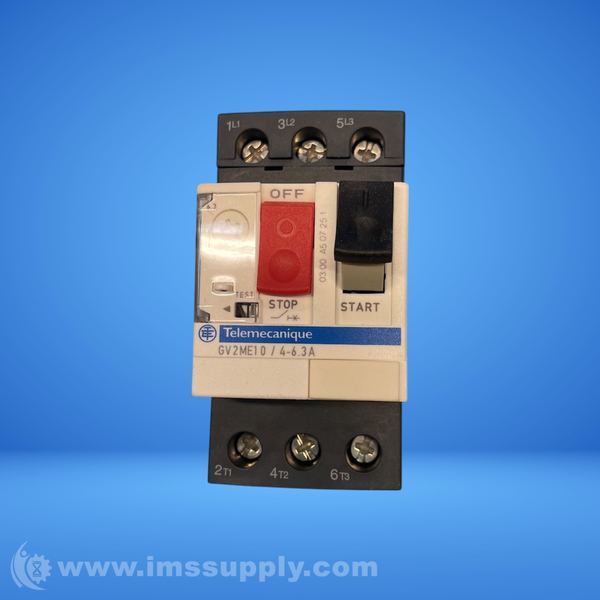

Telemecanique GV2ME10 Motor Circuit Breaker
3-pole motor circuit breaker with thermal-magnetic trip unit, adjustable current setting from 4-6.3A, screw clamp terminals, and push-button control.
Specifications
- type: Motor Circuit Breaker
- range: TeSys GV2
- poles: 3P
- current rating: 4-6.3A
- operator: On/Off push button
- tripping: Class 10
- terminals: Screw clamp
- mounting: 35mm DIN rail
- width: 45 mm
- height: 89 mm
- depth: 78.2 mm
- protective treatment: TH
- rated insulation voltage: 690 V AC 50/60 Hz
- rated impulse withstand voltage: 6 kV
- operating altitude: 2000 m
- mechanical durability: 100000 cycles
- tightening torque: 1.7 N.m
- connections: Screw clamp terminals
- conventional free air thermal current: 6.3 A
- system voltage: 690 V AC 50/60 Hz
- operating rate: 25 cyc/h
- electrical durability: 100000 cycles AC-3 at 440 V
- motor power: 3 kW at 500 V, 4 kW at 690 V, 2.2 kW at 400/415 V
- utilization category: AC-3
- breaking capacity: 3-100 kA Icu
- network type: AC
- product certifications: EAC, ATEX, BV, RINA, DNV, UL, CCC, CE, CSA, LROS, SETI
- network frequency: 50/60 Hz
- device application: Motor
- mounting mode: By Clips/By Screws
- IK degree of protection: IK04
- trip unit technology: Thermal-magnetic
- ambient air temperature for operation: -20-60 degrees C
- ambient air temperature for storage: -40-80 degrees C
- fire resistance: 960 degrees C
- rated service short-circuit breaking capacity: 75-100%
- rated current: 4-6.3 A
- magnetic tripping current: 78 A
- power dissipation per pole: 2.5 W
- rated duty: Continuous
- suitability for isolation: Yes
- phase failure sensitivity: Yes
- product weight: 0.26 kg
- IP degree of protection: IP20
- standards: IEC 60947-1, EN 60204, CSA C22.2, UL 508, NF C 63-120, VDE 0660, IEC 60947-4-1, VDE 0113, NF C 79-130, NF C 63-650, IEC 60947-2

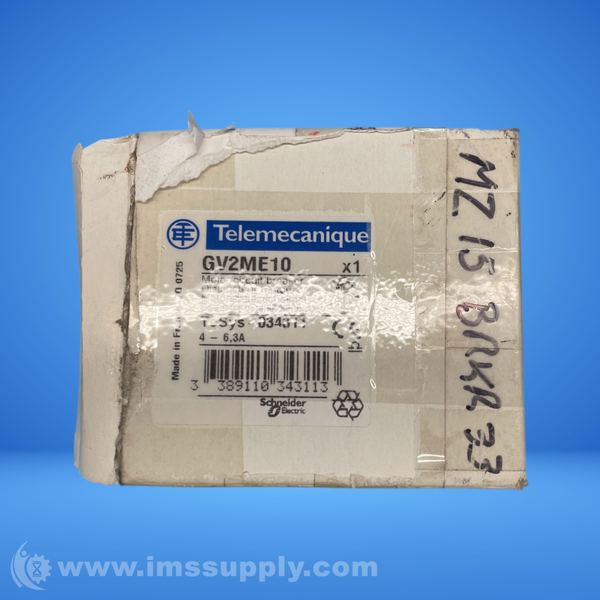

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
