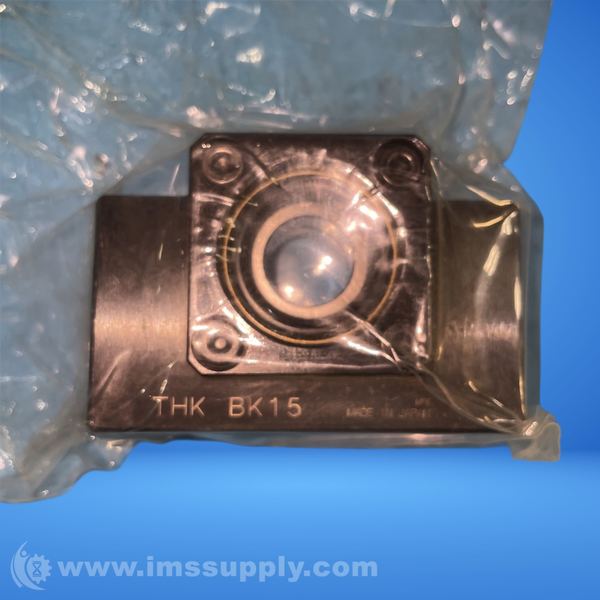

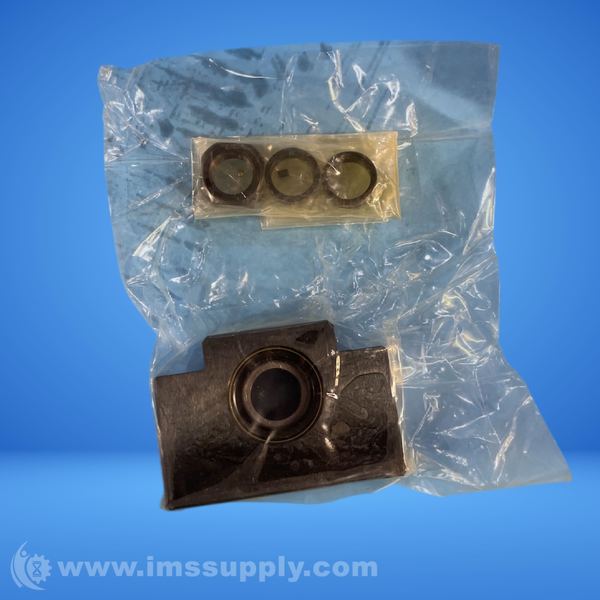

THK BK15 BALL SCREW SUPPORT UNIT
Quick Overview
Manufactured By: THK
Manufacturer Part Number: BK15
IMS Product Code: 2161717
Packaging: Sold Individually
Description:
THK BK15 Ball Screw Support Unit
The THK BK15 is a ball screw support unit with a 15mm bore, featuring a JIS Class 5 angular bearing with adjusted preload. It is designed for general ball screw applications.
Specifications
- Series: BK
- Inner Diameter (Bore): 15mm
- Outer Diameter: 70mm
- Width: 27mm
- Weight: 0.57kg
- Bearing Type: JIS Class 5 Angular Bearing
- Contact Angle: 30 degrees (DF Configuration)
- Preload: Adjusted
- Material: Bearing Steel
- Lubrication: Greased
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
