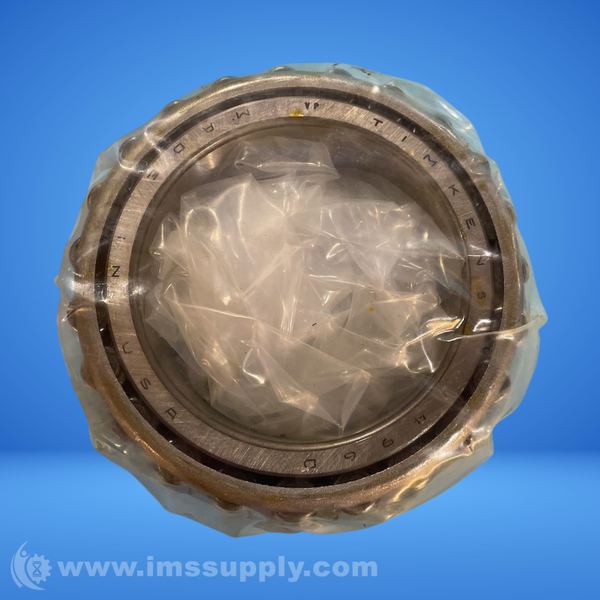

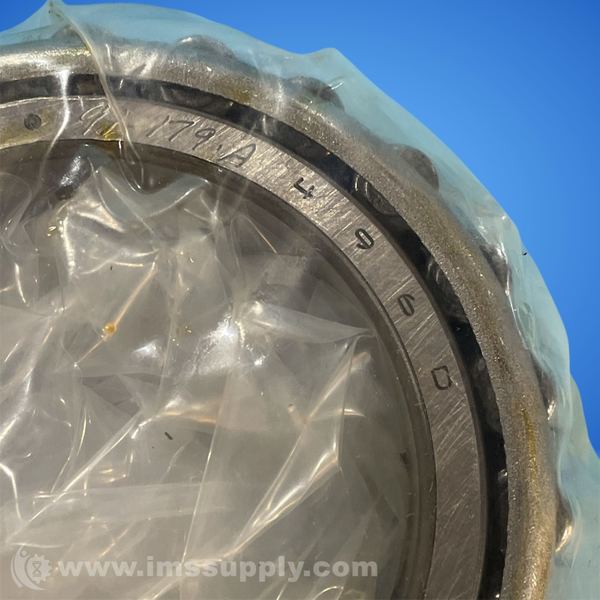

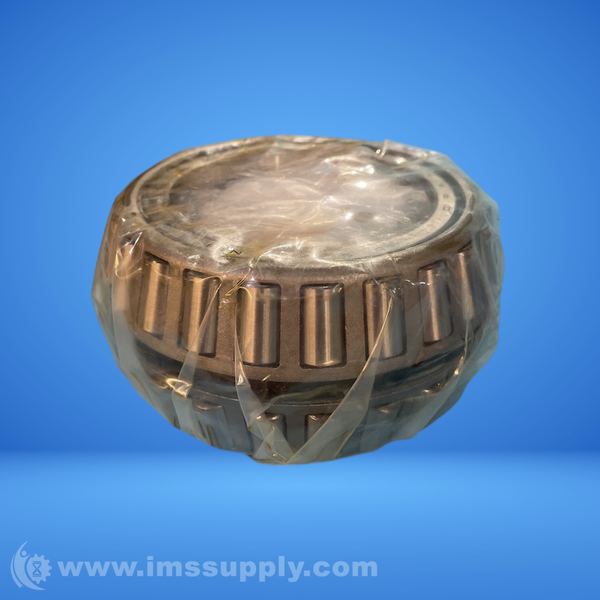

TIMKEN 4960 CYLINDRICAL ROLLER BEARING
Quick Overview
Manufactured By: TIMKEN
Manufacturer Part Number: 4960
IMS Product Code: 2165294
Packaging: Sold Individually
Description:
Timken 4960 Cylindrical Roller Bearing
Double-row cylindrical roller bearing
Specifications
- Bore (d): 300 mm
- O.D. (D): 420 mm / 16.5354 in
- Width (B): 118 mm / 4.6457 in
- Dynamic Radial Load Rating - 1M Revs (C1): 1170000 N / 263000 lbf
- DUR/DOR F/E: 339 mm / 13.3465 in
- Max Shaft Fillet Radius LF ID: 0.12 in / 3 mm
- Max Shaft Fillet Radius RF ID: 0.120 in / 3 mm
- Max Housing Fillet Radius LF OD: 0.12 in / 3 mm
- Max Housing Fillet Radius RF OD: 0.12 in / 3 mm
- Shaft Backing Shoulder Diameter: 330.4 mm / 13.0100 in
- Housing Backing Shoulder Diameter: 389 mm / 15.3100 in
- Static Radial Load Rating (C0): 2380000 N / 536000 lbf
- Thermal Reference Speed - Oil: 880 rpm
- Thermal Reference Speed - Grease: 780 rpm
- Lubrication Groove g: 19.3 mm / 0.76 in
- Lubrication Hole Diameter h: 9.5 mm / 0.37 in
- Number of Lubrication Holes: 8
- Dimension S2: 5.30 mm / 0.210 in
- Geometry Factor (Cg): 0.2050
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
