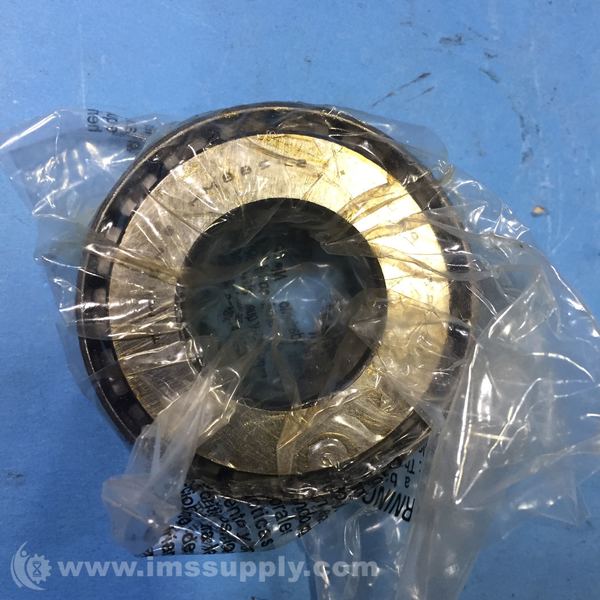

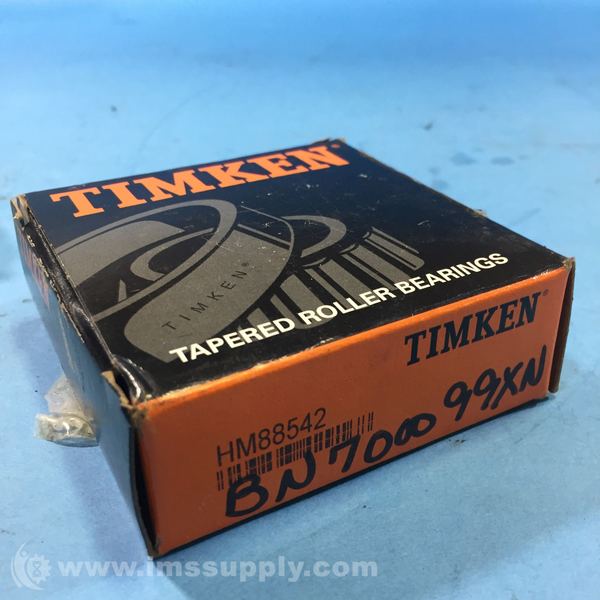

TIMKEN HM88542 TAPERED ROLLER BEARING
Quick Overview
Manufactured By: TIMKEN
Manufacturer Part Number: HM88542
IMS Product Code: 2173384
Packaging: Sold Individually
Description:
Timken HM88542 Tapered Roller Bearing
Single Tapered Roller Bearing Cone
Specifications
- Bore (d): 1.2500 in/31.750 mm
- Cone Part Number: HM88542
- Dynamic Radial Load Rating - 90M Revs (C90): 6010 lbf/26700 N
- Inner Ring Width (B): 1.0938 in/27.783 mm
- K Factor: 1.07
- Max Shaft Fillet Radius: 0.050 in/1.270 mm
- Shaft Backing Shoulder Diameter - Frontface (da): 1.68 in/42.6 mm
- Shaft Backing Shoulder Diameter - Backface (db): 1.79 in/45.5 mm
- Weight: 1.4 lb/0.6 Kg
- Static Radial Load Rating (C0): 24900 lbf/111000 N
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 43 minutes.
