ALLEN BRADLEY 140MT-C3E-B63 MOTOR PROTECTION CIRCUIT BREAKER
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 140MT-C3E-B63
IMS Product Code: 2147512
Packaging: Sold Individually
Description:

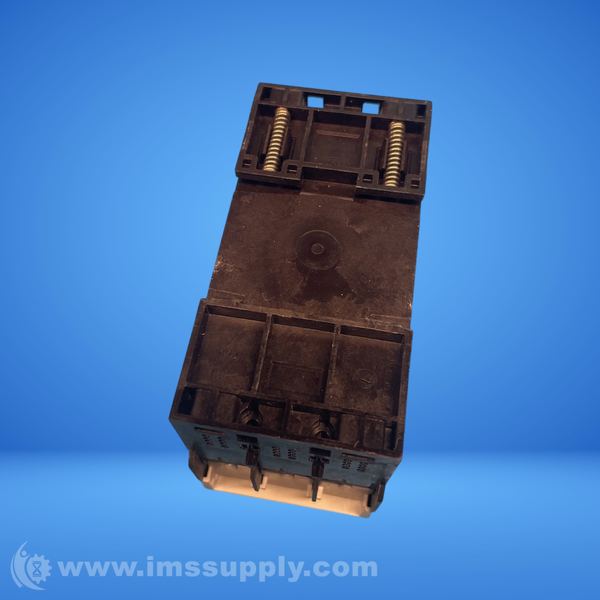

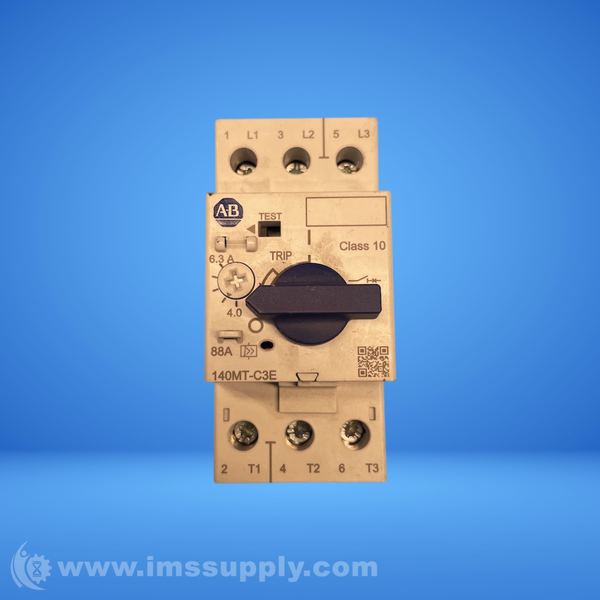

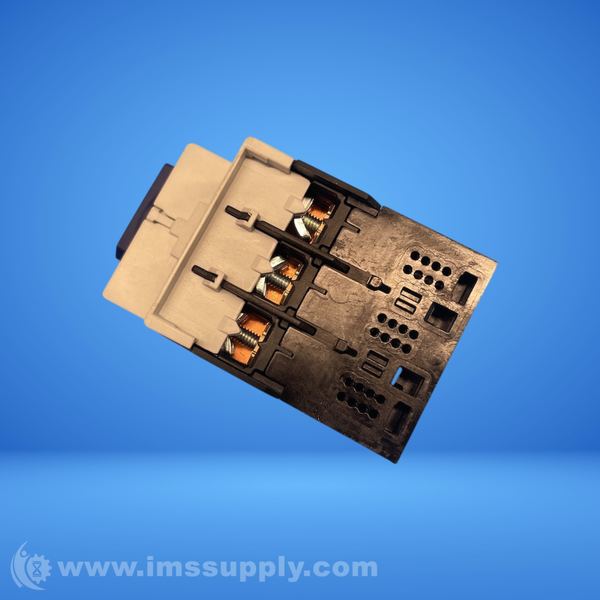

Allen Bradley 140MT-C3E-B63 Motor Protection Circuit Breaker
Motor protection circuit breaker with adjustable thermal current range of 4.0 to 6.3 A, Class 10 tripping, and standard breaking capacity. Features a rotary on/off handle and screw terminals. Mounts on 35MM DIN rail. Suitable for 3-phase applications with 480V AC supply voltage.
Specifications
- amp range: 4.0 to 6.3 amps
- trip class: 10 (trips in 10 seconds or less)
- terminals: screw
- mounting style: 35mm din rail mount
- width: 1.77 in
- height: 3.79 in
- depth: 2.71 in
- supply voltage: 480v 60hz
- circuit breaker type: motor protection circuit breaker
- adj. thermal current range: 4 - 6.3a
- frame size: frame size c
- breaking capacity: standard breaking capacity
- application: standard magnetic trip (fixed at 14 x le)
- magnetic trip current: 88 a
- number of phases: 3
- electrical connection: screw terminal
- weight: 0.75 lbs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
