FESTO ADVC-32-5-I-P SHORT-STROKE CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: ADVC-32-5-I-P
IMS Product Code: 2127453
Packaging: Sold Individually
Sold Individually
Bag of 6
Description:

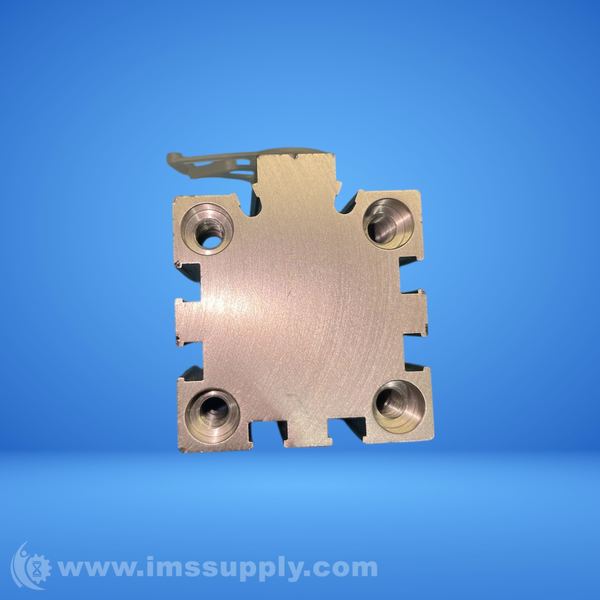

Festo ADVC-32-5-I-P Short-stroke Cylinder
Short-stroke cylinder with 32mm piston diameter and 5mm stroke.
Specifications
- Piston Diameter: 32 mm
- Stroke: 5 mm
- Standard: ISO 6431, VDMA 24562
- Cushioning: Elastic cushioning rings/plates at both ends
- Mode of Operation: Double-acting
- Operating Pressure: 0.1-1 MPa, 1-10 BAR, 14.5-145 PSI
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion Resistance Class: 1 - Low
- Theoretical Force at 0.6 MPa (6 bar, 87 psi), Return Stroke: 415 N
- Theoretical Force at 0.6 MPa (6 bar, 87 psi), Advance Stroke: 483 N
- Moving Mass: 46 g
- Product Weight: 157 g
- Material Cover: Wrought aluminium alloy, Anodised
- Material Seals: NBR, TPE-U(PU)
- Material Housing: Wrought aluminium alloy, Anodised
- Material Piston Rod: High-alloy steel
- Ambient Temperature: -20°C to 80°C
- Pneumatic Connection: G1/8
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
