FESTO ADVC-32-5-I-P SHORT-STROKE CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: ADVC-32-5-I-P
IMS Product Code: 2129373
Packaging: Bag of 6
Sold Individually

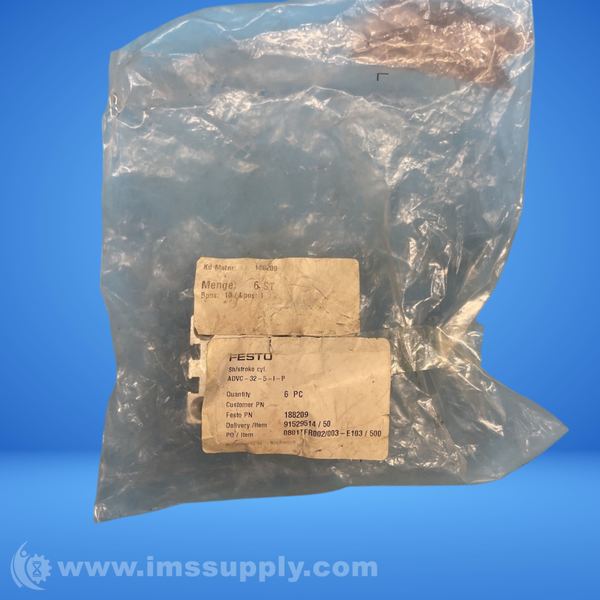

Bag of 6
Description:

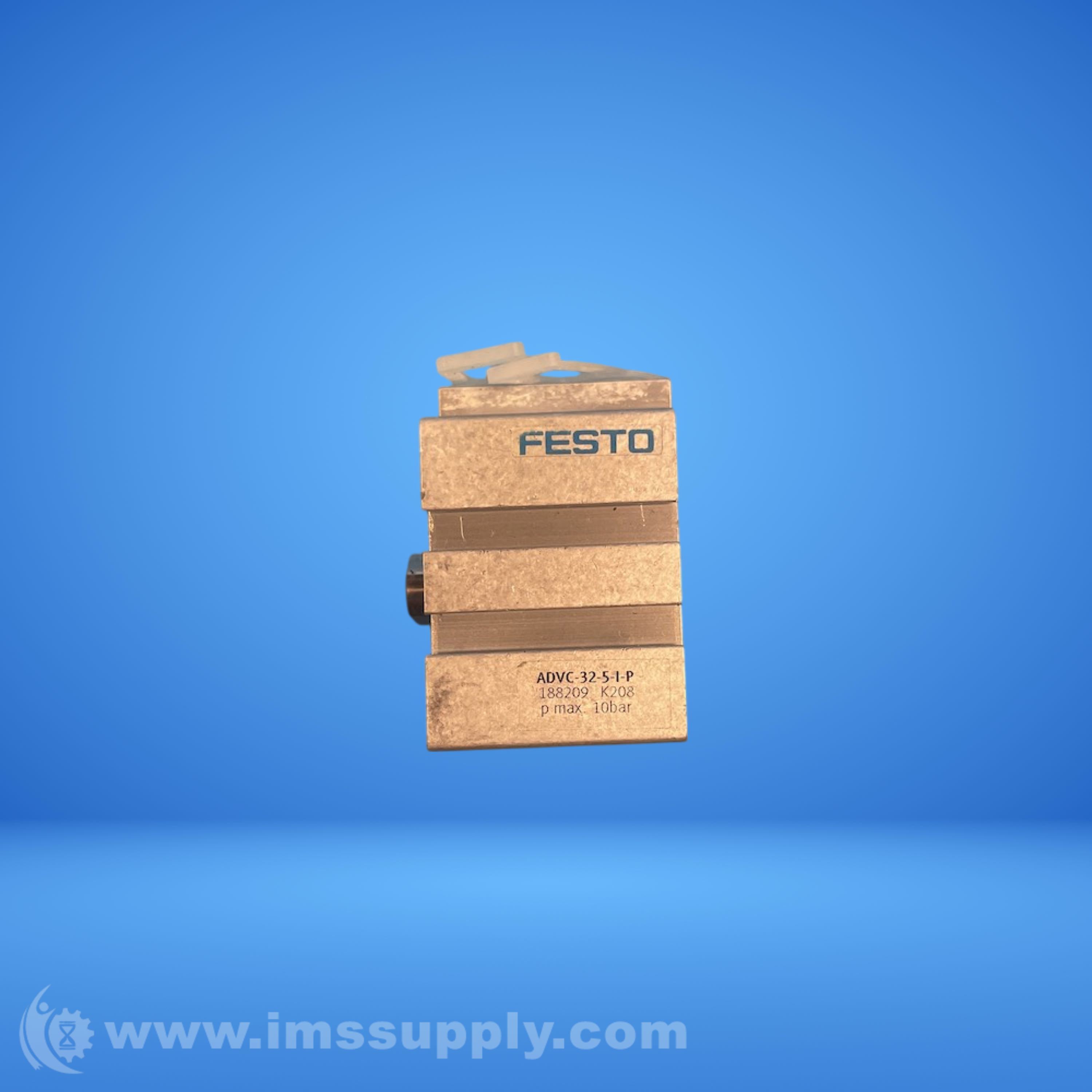

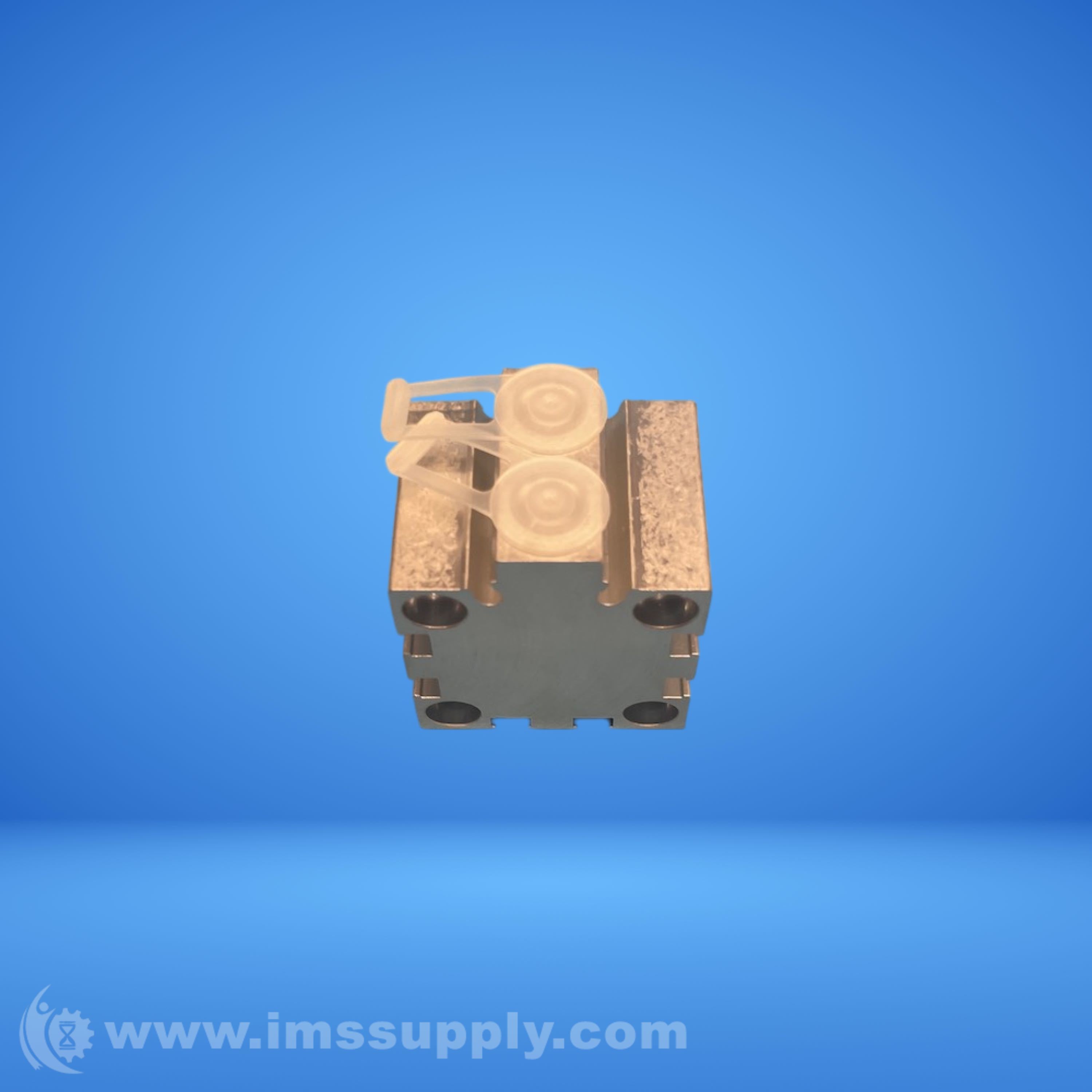

Festo ADVC-32-5-I-P Short-stroke Cylinder
Short-stroke cylinder with 32mm piston diameter, 5mm stroke, and female thread.
Specifications
- Piston Diameter: 32 mm
- Stroke: 5 mm
- Mode of Operation: Double-acting
- Cushioning: Elastic cushioning rings/plates at both ends
- Operating Pressure: 0.1-1 MPa, 1-10 bar, 14.5-145 psi
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion Resistance Class: 1 - Low
- Theoretical Force at 0.6 MPa (6 bar, 87 psi) - Return Stroke: 415 N
- Theoretical Force at 0.6 MPa (6 bar, 87 psi) - Advance Stroke: 483 N
- Moving Mass: 46 g
- Product Weight: 157 g
- Material - Cover: Wrought aluminium alloy, Anodised
- Material - Seals: NBR, TPE-U(PU)
- Material - Housing: Wrought aluminium alloy, Anodised
- Material - Piston Rod: High-alloy steel
- Ambient Temperature: -20°C to 80°C
- Pneumatic Connection: G1/8
- Series: ADVC
- Cylinder Bore Size: 32 mm
- Stroke Length: 5 mm
- Maximum Force: 483 N Advance/415 N Return
- Cylinder Action: Double Acting
- Maximum Load: 46 g Moving Load
- Port Size: G1/8
- Rod Diameter: M10
- Rod Thread Size: M10 x 1.25
- Pressure Rating: 1 to 10 bar
- Temperature Rating: -20 to 80 deg C
- Cushioning Type: P
- Mounting Type: Through Hole
- Material: Wrought Aluminum Alloy Housing/High Alloy Steel Piston Rod
- Finish: Anodized
- Dimensions: 40 mm L x 52 mm W x 45 mm H
New - Open Box (Special):
Bag of one (1) remaining.
Availability: 1 In Stock
