FESTO SLT-20-20-P-A MINI SLIDE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: SLT-20-20-P-A
IMS Product Code: 2129380
Packaging: Sold Individually
Description:

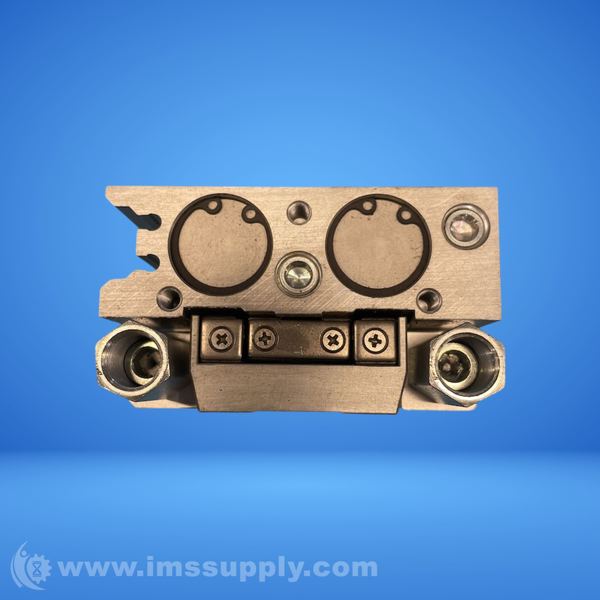

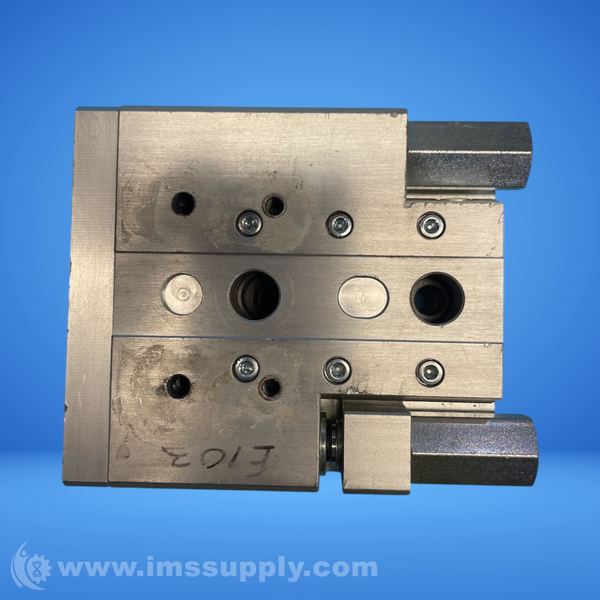

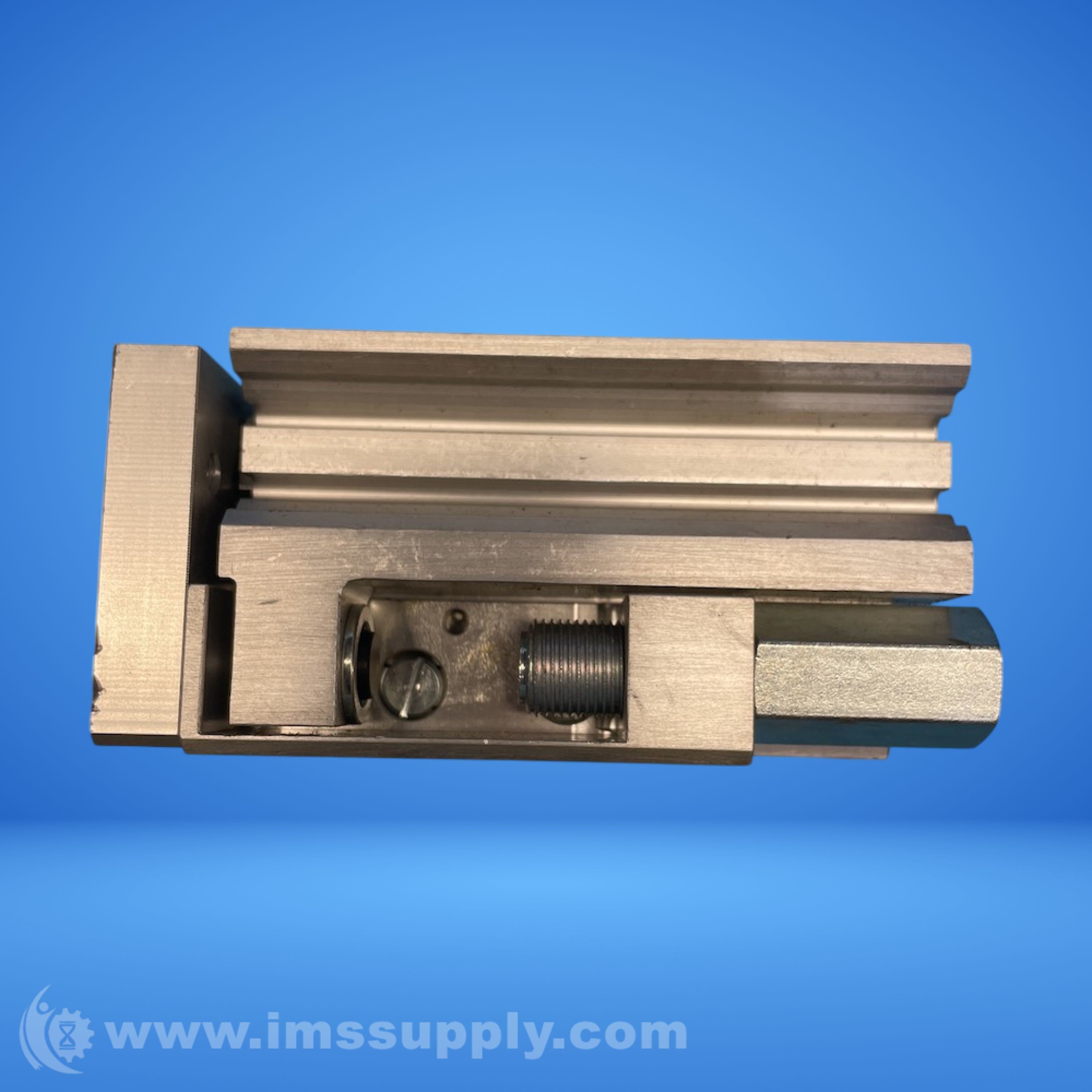

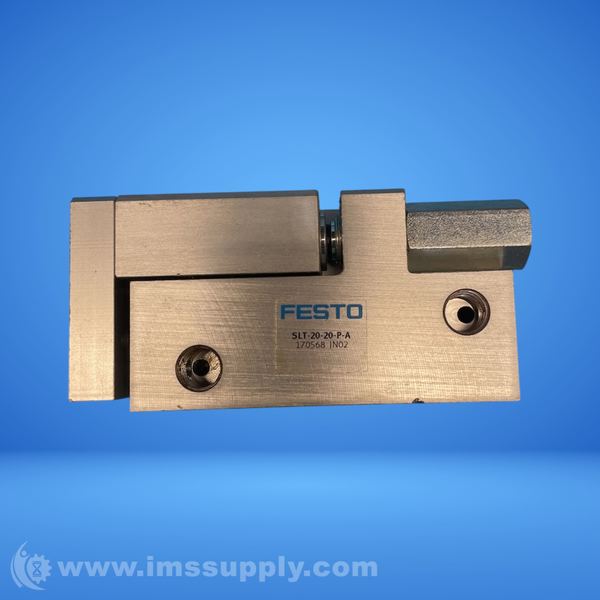

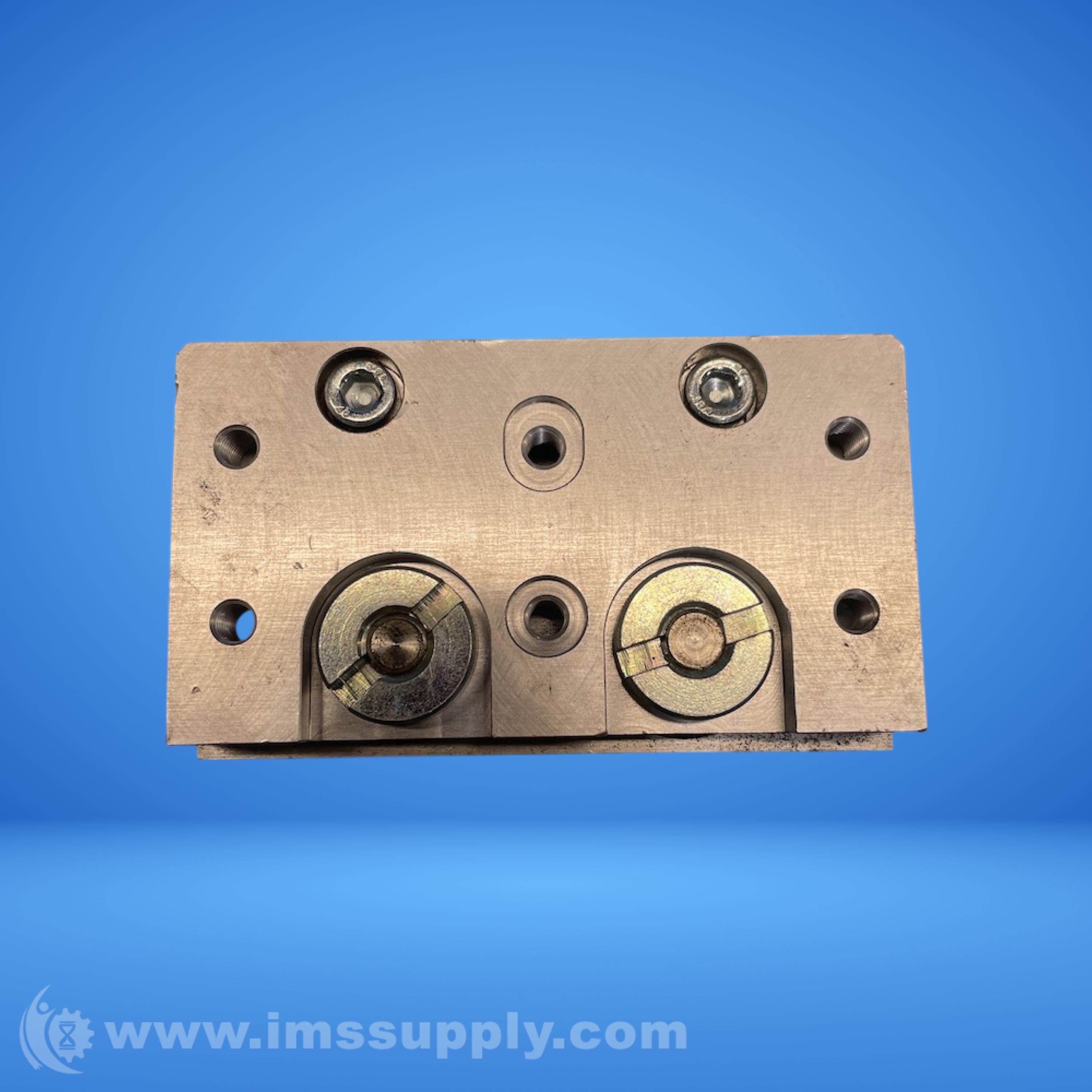

Festo SLT-20-20-P-A Mini Slide
Double acting mini slide with 20 mm bore size and 20 mm stroke length. Maximum force 376 N, maximum load 526 g. Port size G1/8, pressure rating 1 to 10 bars. Temperature rating -20 to 60 degrees C.
Specifications
- Type: Mini Slide
- Series: SLT
- Cylinder Bore Size: 20 mm
- Stroke Length: 20 mm
- Maximum Force: 376 N
- Cylinder Action: Double Acting
- Maximum Load: 526 g
- Port Size: G1/8
- Pressure Rating: 1 to 10 bars
- Temperature Rating: -20 to 60 degrees C
- Mounting Type: Through Hole
- Material: High Alloy Steel Piston Rod/Wrought Aluminum Alloy Housing
- Finish: Anodized
- Dimensions: 97 mm L x 49 mm W
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
