MOELLER PKZM0-6.3 MANUAL MOTOR PROTECTOR
Quick Overview
Manufactured By: MOELLER ELECTRIC
Manufacturer Part Number: PKZM0-6.3
IMS Product Code: 1903674
Packaging: Sold Individually
Description:

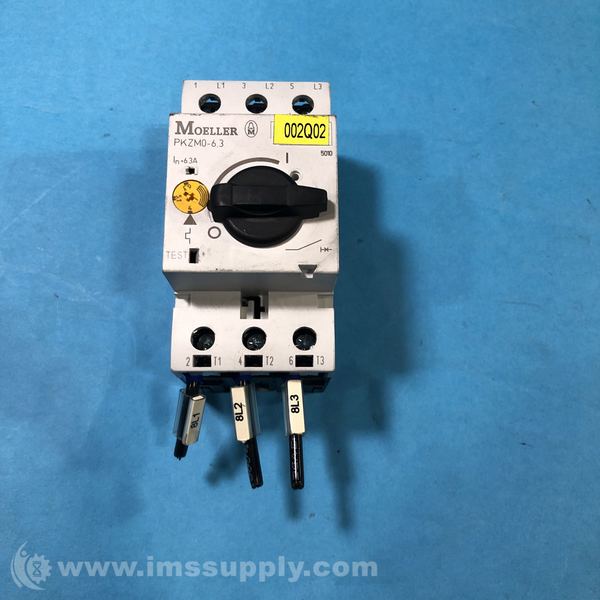

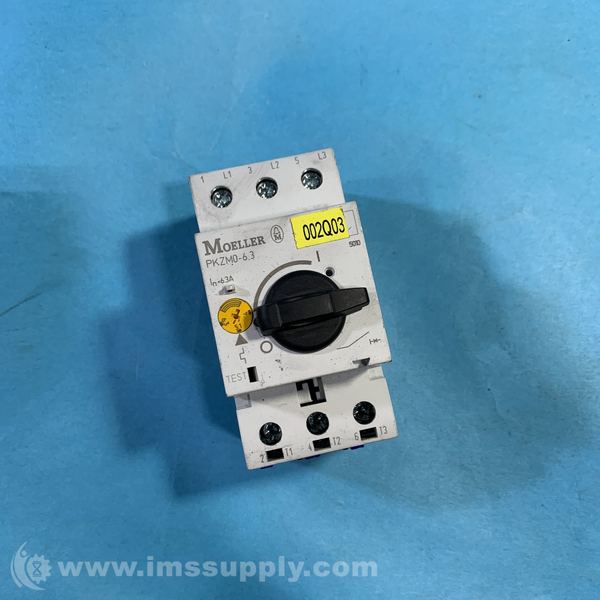

Moeller PKZM0-6.3 Manual Motor Protector
3-pole manual motor protector with adjustable thermal range 4-6.3A, Class 10 tripping characteristic, and screw terminals.
Specifications
- AMP Range: 4 to 6.3 AMPS
- Tripping Characteristic: Class 10
- Phase loss sensitivity: Yes
- Terminals: Screw
- Degree of Protection: IP20
- Rated Impulse Withstand Voltage: 690v
- Rated Frequency: 50/60Hz
- Lifespan, Electrical: 100,000 operations
- Lifespan, Mechanical: 100,000 operations
- Short Circuit Release Tolerance: +/- 20%
- Poles: 3
- Adjustable Thermal Range: 4 – 6.3A
- Magnetic Trip Response: 88A
- Rated Uninterrupted Current (Iu): 6.3A
- Max. Motor Rating (220–240V): 1.1 kW
- Max. Motor Rating (380–415V): 2.2 kW
- Max. Motor Rating (440V): 3 kW
- Max. Motor Rating (500V): 4 kW
- Max. Motor Rating (660–690V): 6.3 kW
- Certifications: UL Listed, CSA Certified
- Ambient Operating Temperature: -25°C To +55°C
- Weight: 0.35 kg
- Dimensions: 10.00 × 9.00 × 8.00 cm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 8 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
