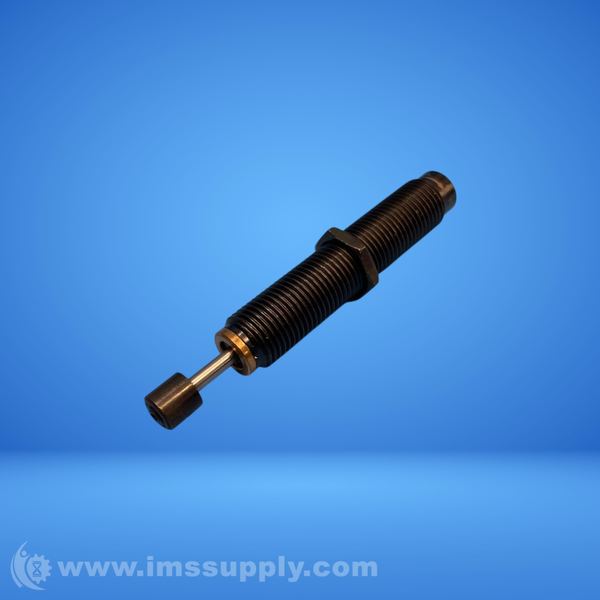

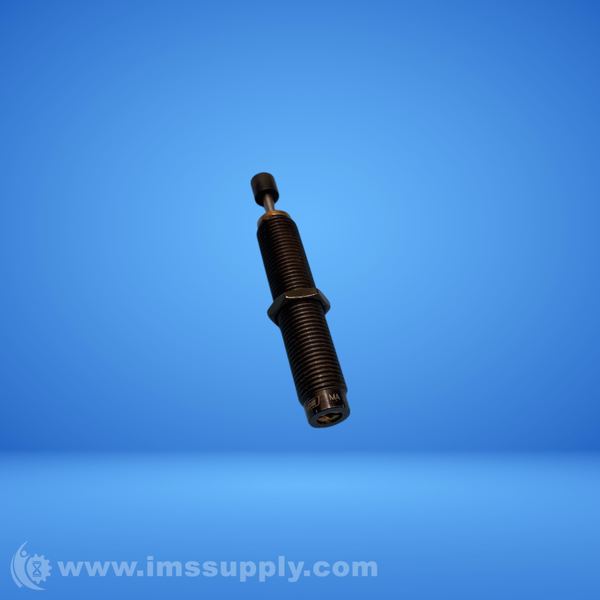

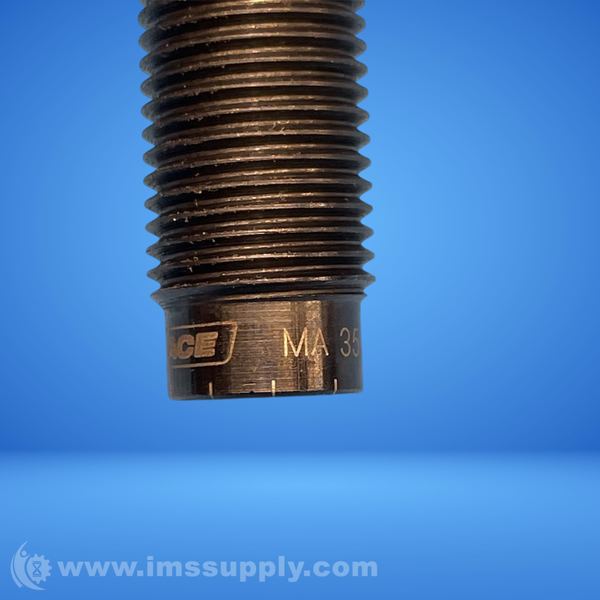

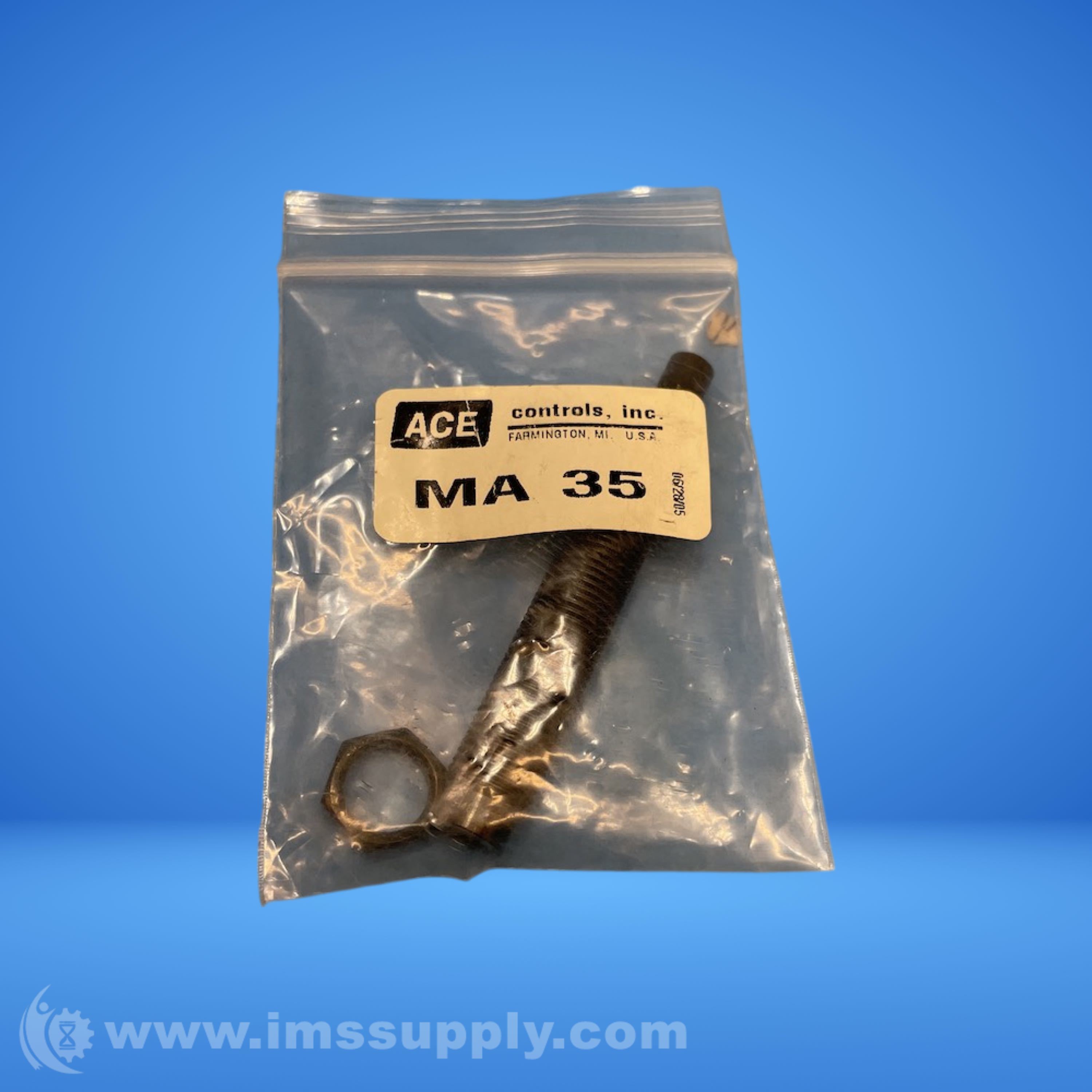

ACE MA35 ADJUSTABLE MINI SHOCK ABSORBER
Quick Overview
Brand: ACE
Part Number: MA35
IMS Product Code: 2134141
Packaging: Sold Individually
Description:
Ace MA35 Adjustable Mini Shock Absorber
Adjustable hydraulic feed control with stepless hydraulic feed control and an adjustable energy capacity of 35 in-lbs per cycle and a 0.40-inch stroke. Designed for applications needing less precision, it provides versatile options and comes with numerous accessories. This ready-to-install, maintenance-free shock absorber ensures temperature stability and eliminates stick-slip effects. With speeds as low as 0.47”/min (12 mm/min), it operates smoothly under low thrust force via an adjustment screw. Ideal for industrial, automation, and machine engineering, it delivers reliable, customizable performance to suit your specific needs.
Specifications
- Compression force: 2 lbs to 800 lbs
- Stroke: 0.4 inch
- Energy capacity: 35 in-lbs/cycle
- Impact velocity range: Max. 3.3 ft/sec
- Adjustment: Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS
- Positive stop: Integrated
- Damping medium: Oil, temperature stable
- Material: Outer body: Nitride hardened steel; Piston rod: Steel with black oxide finish or nitride hardened
- Mounting: In any position
- Operating temperature range: 32 °F to 150 °F
- Thread (M): 1/2-20 UNF inch
- Effective weight min.: 13 lbs
- Effective weight max.: 125 lbs
- Return Force min.: 1.20 lbs
- Return Force max.: 2.60 lbs
- Return Time: 0.2 s
- Side Load Angle max.: 2 °
