TSUBAKI TL700-1 TORQUE LIMITER
Quick Overview
Manufactured By: TSUBAKI
Manufacturer Part Number: TL 700-1
IMS Product Code: 2135675
Packaging: Sold Individually
Description:

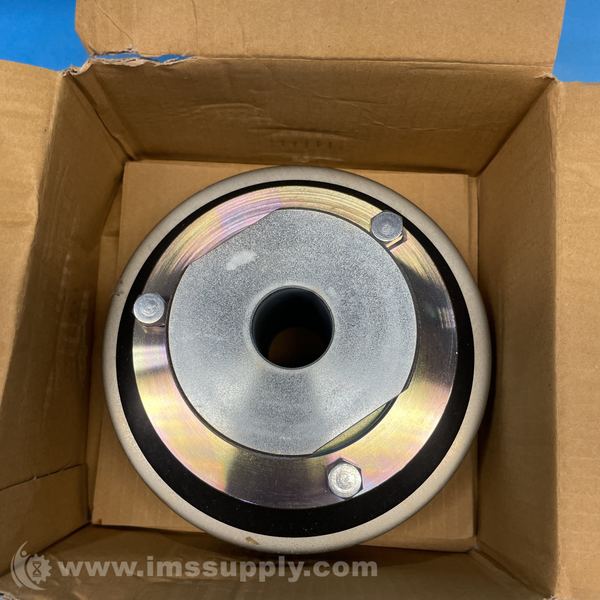

Tsubaki TL700-1 Torque Limiter
Traditional machine protection. Friction-type construction. Slip-torque setting is done by simply tightening the adjusting nut or bolts. Competitively priced and easy to use.
Specifications
- Torque [Min]: 85.0 lb·ft / 116.0 N·m
- Torque [Max]: 420.0 lb·ft / 569.0 N·m
- Speed [Max]: 1800 rpm
- Bore Size [Max]: 2.520 in / 64.00 mm
- Bushing Lengths: 0.374, 0.492 in / 9.50, 12.50 mm
- L: 3.860 in / 98.00 mm
- D: 7.000 in / 178.00 mm
- DH: 3.750 in / 95.00 mm
- S [Max]: 1.142 in / 29.00 mm
- Weight: 8.400 kg / 18.850 lb
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
